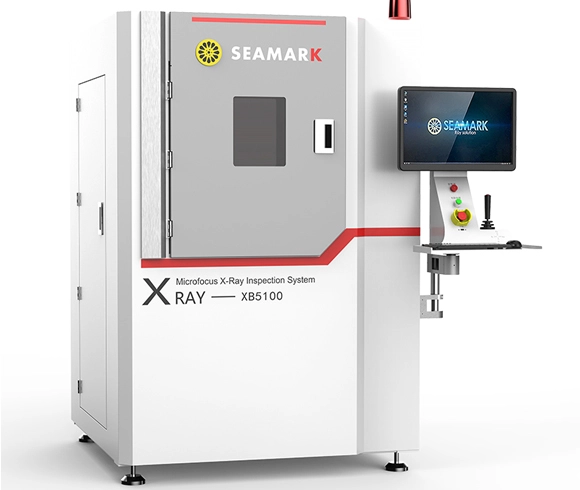

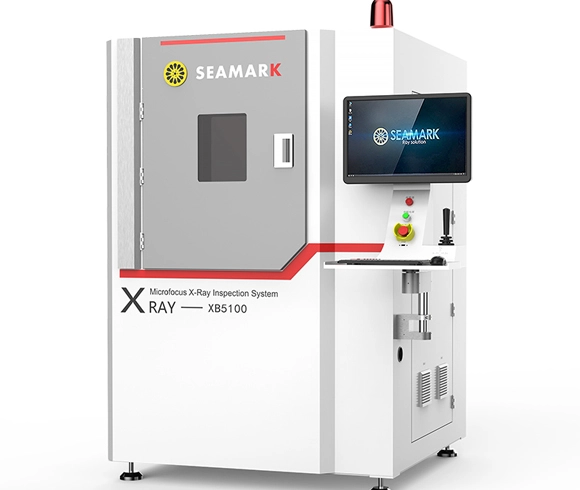

XB5100-Winding Battery Inspection

With its expanding inspection features, including plate fold and tab fold, and flat panel detector image acquisition technology, The Seamark XB5100 X-Ray inspection machine is a good machine for inspecting winding process-type batteries in the lithium battery sector. X-Ray inspection systemAppropriate for inspecting aluminum shell batteries, cylinders, buttons, energy storage/power winding, and lithium digital soft packs.

Specifications of XB5100 - Winding Battery Inspection

X-ray Tube Parameters
Tube TypeReflective Sealed Micro-Focus Ray Source
Tube Voltage Range40-90KV/40-130KV
Tube Rurrent Range10-200uA/10-300uA
Maximum Output Power8W-39W
Micro Focus Size5-15um
Receiver Parameters
Flat Panel TypeAmorphous silicon flat panel detector (optional)
Pixel Matrix1536*1536
Field of View130mm*130mm
Image Frame Rate (1x1)20fps
Ad Conversion Bits16bits
Detection Efficiency And Accuracy Parameters
Repeated Test Accuracy40um (standard piece measurement)
Detection Speed≥1.0/detection point (excluding loading and unloading time)
Stage Parameters
Maximum Sample Size420mmX420mm
Loading Capacity≤8Kg
Other Parameter
Control SystemIndustrial computer Win10 (64-bit)
International Radiation Safety Standards≤1μSV/hr
Equipment Size/Weight1220*1260*1900mm, About 1000Kg
Power SupplyAC220V 10A, 50-60Hz

Video of XB5100 - Winding Battery Inspection

Features of XB5100-Winding Battery Inspection

  • 01
    High Configuration

    Adopt the Hamamatsu X-ray tube, which is one of the best X-ray tubes around the world.

  • 02
    Advanced Algorithm

    Equip with Seamark Self-developed algorithm software.

  • 03
    Professional Service

    Professional R&D and after-sale service team that can provide in-time solutions.

Empower Your Batteries with SEAMARK: Where Precision Meets Power!
