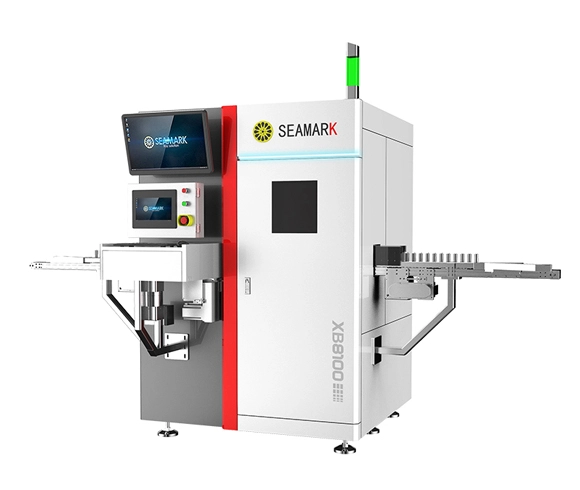

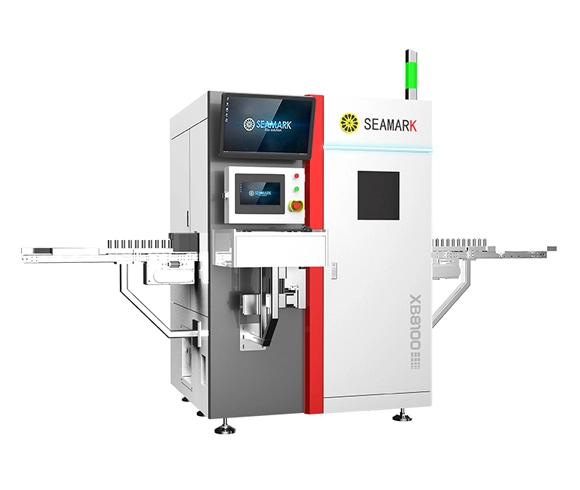

XB8100-Cylindrical Battery Inspection

The XB8100 is tailored for cylindrical batteries ranging from φ14mm to φ46mm, addressing diverse inspection needs. It utilizes advanced area array sampling technology, or TDI line scanning sampling technology, to ensure efficient and precise inspections for multi-layer high-efficiency batteries with varying diameters. Inspection parameters cover aspects such as angle overhang, resistance value, conductivity, and more, guaranteeing thorough quality assessments.

Specifications of XB8100-Cylindrical Battery Inspection

X-ray Tube Parameters
Ray Tube TypeReflective sealed micro-focus ray source
Tube Voltage Range110KV / 130KV
Tube Current Range455μA/300μA
Maximum Output Power50W/39W
Micro Focus Size5-15μm
Receiver Parameters
TypeFlat panel detector/line array detector TDI
Field of View130mm*130mm/ 205mm*6mm
Resolution/pixel Size5.8Lp/mm 100μm
Ad Conversion Digits16bits
Efficiency Parameters
Detection Efficiency≥90ppm/ ≥200ppm
Overkill Rate≤1.5%
Underkill Rate0.00%
Product Excellence Rate≥99.5%
Other Parameters
International Radiation Safety Standards≤1usv/hr
Control SystemIndustrial computer Win10 (64-bit)
Equipment Size






Power Supply

3-phase 380V/50HZ about 3000W

3-phase 380V/50HZ about 4500W

Detection Range



Features of XB8100-Cylindrical Battery Inspection

  • 01
    Premium X-ray Technology

    The XB8100 employs the globally acclaimed Hamamatsu X-ray tube, renowned for its precision. This ensures detailed inspections of winding batteries, guaranteeing top-quality performance.

  • 02
    Advanced Algorithm Integration

    Seamark's in-house algorithm software enhances XB8100's capabilities. These sophisticated algorithms enable the machine to detect intricate battery details accurately, leading to precise quality assessments.

  • 03
    Dedicated Customer Support

    Seamark provides unmatched customer assistance. Their skilled Research and Development (R&D) specialists and after-sales service team offer swift and effective solutions, ensuring smooth operation for businesses relying on the XB8100.

Empower Your Batteries with SEAMARK: Where Precision Meets Power!
